Launch X-431 S2-2 SensorBox – Automotive Sensor Testing

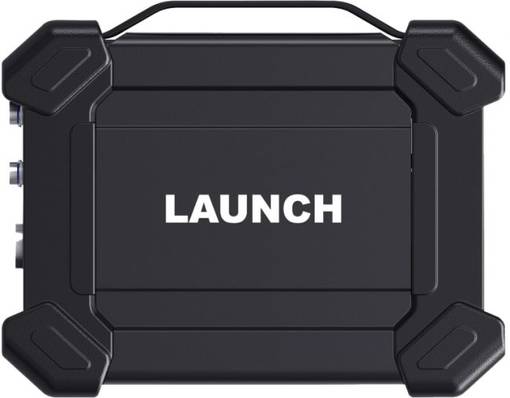

The LAUNCH X-431 S2-2 SensorBox expands compatible X-431 diagnostic equipment with sensor signal simulation and electrical measurement. Technicians can compare expected sensor behaviour with live vehicle measurements when investigating wiring, sensor and control-system faults.
Main Functions
- Simulate sensor outputs using predefined and custom waveforms
- Generate adjustable test signals for supported sensor and actuator checks

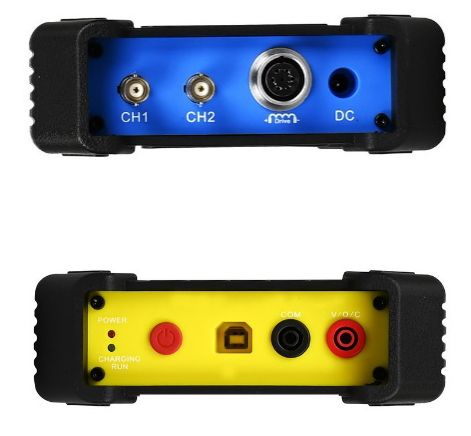

- Built-in multimeter for voltage, resistance and frequency measurements
- Waveforms can be designed through the connected compatible X-431 tablet
Technical Data
- Specified signal amplitude range: −12 V to +12 V
- Maximum signal output current: 70 mA
- Preset signal frequency: 0–150 Hz
- Square-wave frequency up to 15 kHz
- Duty-cycle adjustment: 10–90%
- DC voltage measurement: −400 V to +400 V
- Resistance measurement: 0–40 MΩ
- Frequency measurement: 0–25 kHz
Compatibility
Designed for supported LAUNCH X-431 EURO TAB II and EURO TAB III diagnostic tablets. Software integration is required for waveform control. The diagnostic tablet is not included.
What’s Included

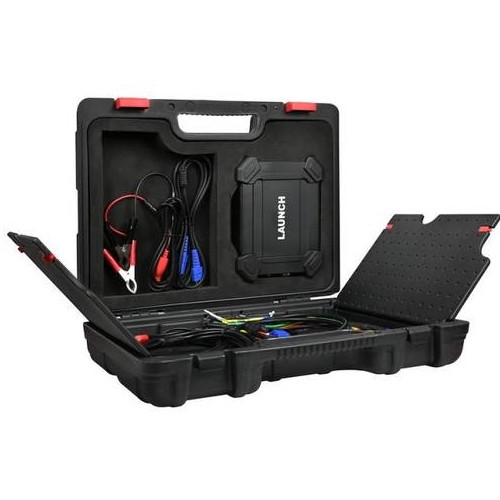

SensorBox module, connecting leads, test probes, USB and power accessories and carrying case as listed in the supplied package.
